The compact vertical balancing machine for rotors up to 15 kg

Go back

The compact vertical balancing machine for rotors up to 15 kg VIRIO 15 - SCHENCK RoTec GmbH

The compact vertical balancing machine for rotors up to 15 kg
  • Compact design
  • Low space requirement
  • Fast and easy commissioning
  • Can be erected without foundation
  • Highest measuring accuracy
  • Ergonomic operation concept
  • Short changeover times due to force-measuring principle
  • Safety device of class C according to ISO 21940-23
Design

The Virio 15 is a very compact balancing machine with very good ergonomics and laid out for simple operation.

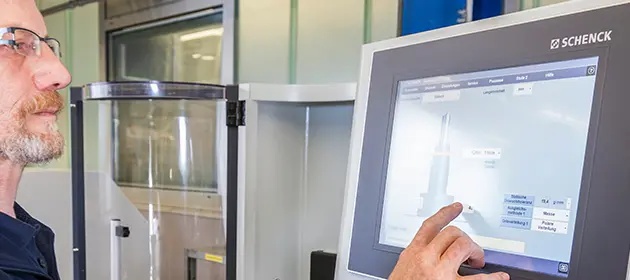

The display of the measuring instrument is ideally located in the field of vision and allows the simple and direct input of all data via touch screen. The logically designed operating concept convinces with clear and concise displays.

In addition to ideal damping properties, the machine frame made of mineral casting also enables the Virio 15 to be designed as a crane hook machine. Simply set up, adjust and connect power - and you can already start balancing your workpieces.

Special features
  • The machine can be set up directly on the workshop floor without foundation, but with bolting and is ready for use.
  • Integrated safety device of class C according to ISO 21940-23
  • Short changeover times due to force-measuring principle
  • High balancing accuracy
  • Ergonomic design
  • Steplessly adjustable drives
  • Measuring device: optionally CAB 820 or CAB 920
    • Basic measuring instrument CAB 820 combines top performance with great ease of use, all at a very good price/performance ratio.
    • High-End Measuring Device: CAB 920 SmartTouch combines highest precision with simplest, intuitive operation and surprises with an ingeniously simple operating concept whose logical connections are revealed at a glance.
Application area

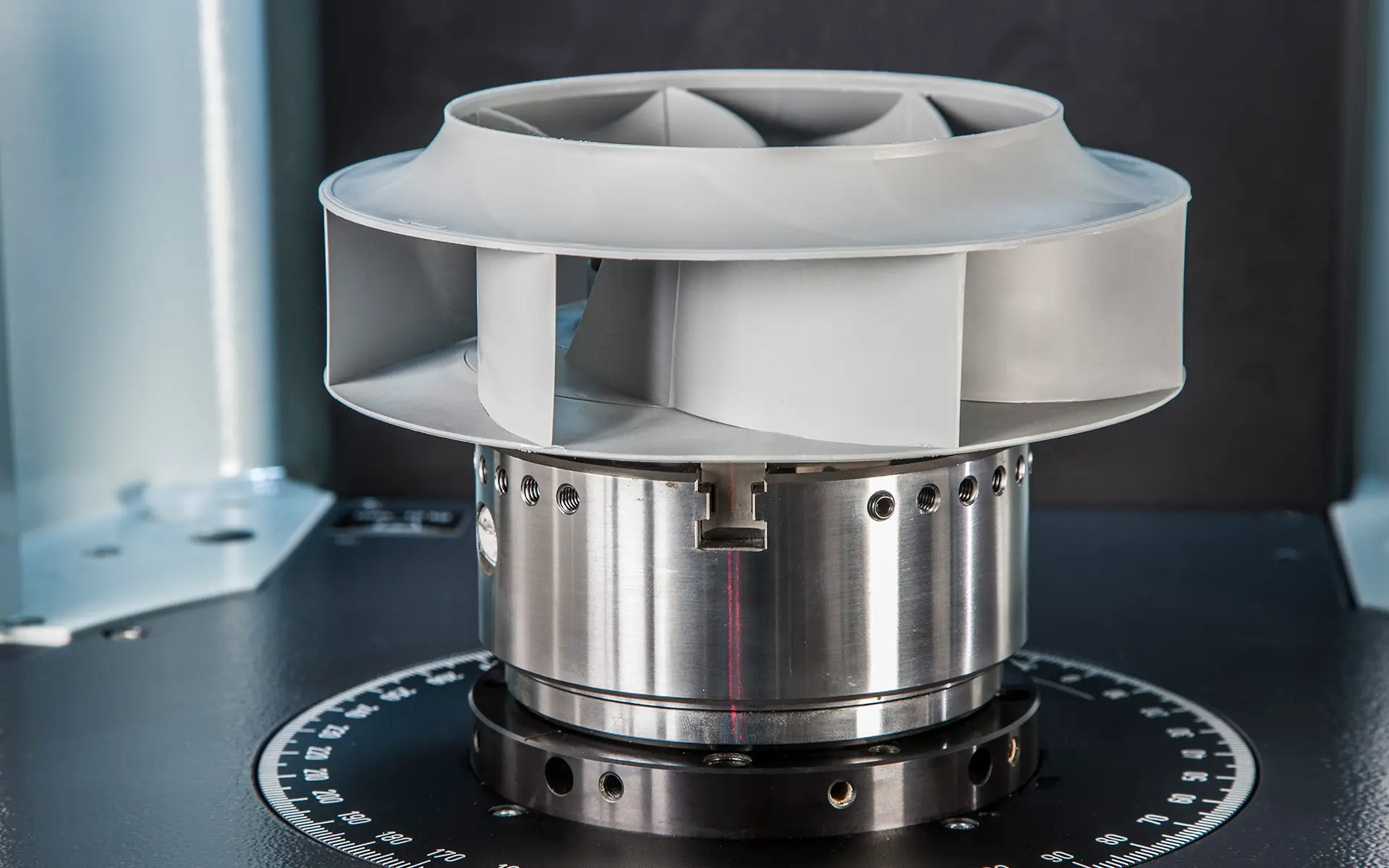

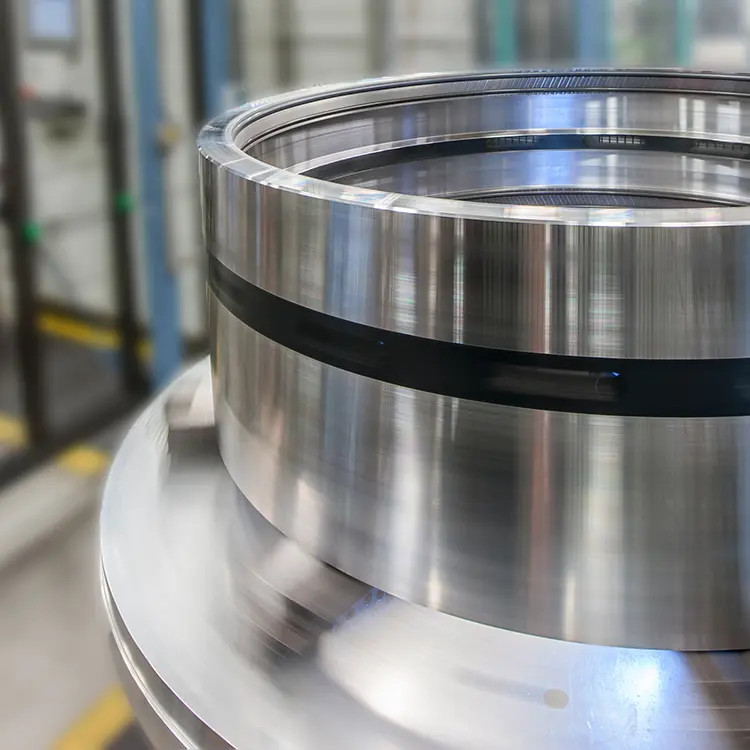

The Virio 15 is the ideal choice for balancing of disc- or pot-shaped rotors, such as flywheels and pulleys, pump impellers, fans and gear components weighing up to 15 kg and up to 400 mm in diameter. Unbalance correction is carried out by adding or removing material outside the machine.

Technical data
Data at a glance    Rollers

Rotor
Max. Rotorgewicht  [kg]  15
Max. Rotordurchmesser   [mm]  400
Max. Werkzeuglänge inkl. Aufnahme  [mm]  600
Messung in Rotorebenen     2 Ebenen
Spindeldrehzahl   [min - 1]  1200
Kleinste erreichbare Restunwucht pro Ebene  [gmm/kg]  0,5
Maschine
Width 1)  [mm]  1660
Depth 1)  [mm]  880
Height 1)  [mm]  1720
Total weight  [kg]  500
Power supply    220V ± 10 %, 50 / 60 Hz
Compressed air  [bar]
Drive power  [W]  400
Automatic angle indexing    enthalten
2-colour painting     RAL 7035 (light grey), RAL 7024 (graphit grey)
Measuring devices
    CAB 820
    CAB 920 with touchscreen operation
Options
    Protective cover acc. to DIN ISO 21940-23 class C (protection against flying away parts)
    Printer for protocol printouts
    Keyboard with trackball available
    Label printer
