The SVA 90 comes as a handy, three-channel vibration analyzer with speed unit that allows for the evaluating of machinery condition and rolling–element bearings with characteristic overall values. This instrument will help you to prevent costly downtime.
The SVA 95 is a four-channel vibration analyzer with speed unit that comes with a multitasking tool in order to analyze your machinery. The unit has all the functions you could need in the field. It is an all-purpose measuring device ideal for fast, easy route-based data collection, monitoring the condition of machines, and field balancing.

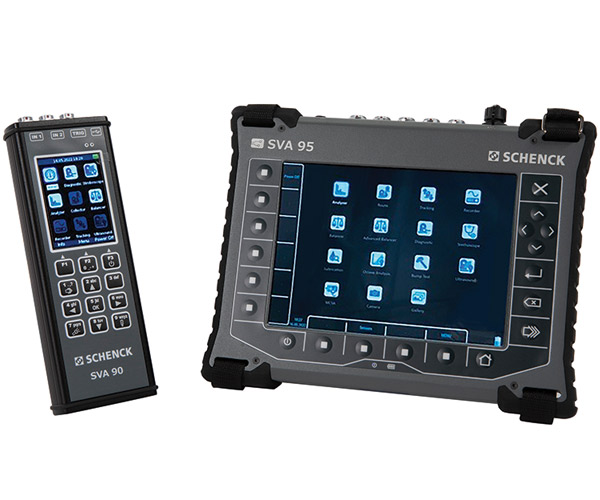

SVA 90 and SVA 95 VibroAnalyzers
The Smart VibroAnalyzer 90 is a small portable unit focused for data collection. The SVA 90 key features included are Speed Detection, Meter Mode, Diagnostic, Stroboscope, and Diagnostic Center Basic
SVA 90 comes as a 3 Channels + Speed unit.
Meter Mode (SVA 90 only).
This module includes the following basic vibration measurements:
- Overall vibration
- Provides a traffic light display of vibration values based on pre-setup limits. The color indication is according to ISO 10816 standards.
- Overall (RMS) and Peak values are displaced with the following frequency ranges: Velocity (10 Hz – 1000 Hz) or Acceleration (0.5 kHz -25.6 kHz) - FFT Spectrum
In mm/s (RMS) with 3 maximum peaks (2 Hz – 200 Hz) - Displacement values
Uses the following frequency range of (2 Hz – 100 Hz) - Time Signal
- Used for roller bearings (0.5 kHz -25.6 kHz)
- Vibration in RMS for gearboxes/bearings in the following frequency ranges (0.5 kHz -1.5 kHz), (1.5 kHz -5 kHz), & (5 kHz -25.6 kHz) - Temperature
Displayed in colored ranges using IR temperature sensor
Diagnostic
This module is an expert system for automatic detection of possible machine faults. Displays the following faults:
- Overall machine condition
- Overall bearing condition
- Severity of unbalance fault
- Severity of mechanical looseness
- Severity of misalignment
- Displays via text if the found condition
is good or severity of fault or provides
a velocity spectrum displayed on the
bottom of the screen.
Stroboscope (SVA 90 only)
- This module visually “freezes” the machine movement and checks its rotating parts
Diagnostic Center Basic
This software allows for connection of the SVA 90/95 to the PC for Report Generation.
Tracking
This module allows the user to set up a coast down or runup measurement.
- The measurements can be taken based on multiple situations such as by speed change, time change, as soon as possible, etc.
- This feature helps the user see where resonances in their machine are located allowing for additional analysis or balancing to be performed.
Data Collector
This module is used for day-to-day data collection of your factory machinery. Simply create your route tree with measurement points using the Diagnostic Center Standard software and take the measurements regularly. Transfer this collected data back to the Diagnostic Center to analyze the data and trends.
- Unlimited number of routes
- Up to 12 measurements per point
- Up to 3 vibration measuring points, plus speed reference (Simultaneously measured)
- Data review on site possible
- Off route measurements are possible
- Diagnostic Center Standard
- Customized Reports via PC
Analyzer
This module allows the user to select the type of measurement from simple overall values to detailed FFT’s and time wave forms. In addition, the user can perform more advanced measurements with proximity probes such as orbits.
- Real-time FFT
- Demod/envelope analysis
- ACMT – low speed bearing analysis
- Order Analysis
- Orbit Measurement
- User Band Pass Analysis
- Frequency Range: 0.5 Hz - 25 kHz (64 kHz sampling)
- FFT Resolution: Min: 100 lines, Max: 25,600 Lines
- Fully simultaneous for 3 channels
- Crest Readings
- Time signal measurements
- Phase Shift
- DC Measurements
- Centerline Measurements
- Smax
- Overall Measurements
Field Balancing
This module allows for balancing equipment in situ, both in the field and during final assembly, providing a quality product.
- Multiple balancing types such as Polar (0-360
degrees), component, and fixed weights - Flexible Visualization of balancing: polar plot and table overview
- Optimizing the final vibration level at the two bearings supports in an early stage while balancing in a single plane
- Allows for Rotor setting to calculate balance quality according to ISO 1940
Ultrasound
This module uses a microphone (sold separately) to allow for the measurement of sound inaudible to the human ear.
- Typical applications that benefit from the use of ultrasound measurements are air leak detection, electrical arcing, or early bearing fault detection.
Recorder
This module is a unique measurement mode allowing you to “record” the raw signal from the sensor i.e. the raw signal from the machine.
- The Recorder allows you to then post-process the signal later on the unit.
- The user can perform the post-processing on the same raw data multiple times.
Diagnostic Center Standard
The Upgrade from Basic to Standard allows for additional cursor functions when analyzing the data on the PC. The Standard software also allows for the creation of Routes and is needed when the Data Collection module is added.
Diagnostic Center Pro
The upgrade to the Pro version of the software allows for the management of custom report templates and the use of the bearing and system database.
The Smart VibroAnalyzer 95 is the most powerful vibration analyzer currently on the market. — You name it, the SVA 95 can do it!
SVA 95 comes as a 4 Channels + Speed unit
Diagnostic
This module is an expert system for automatic detection of possible machine faults. Displays the following faults:
- Overall machine condition
- Overall bearing condition
- Severity of unbalance fault
- Severity of mechanical looseness
- Severity of misalignment
- Displays via text if the found condition is good or severity of fault or provides a velocity spectrum displayed on the bottom of the screen.
Analyzer
This module allows the user to select the type of measurement from simple overall values to detailed FFT’s and time wave forms. In addition, the user can perform more advanced measurements with proximity probes such as orbits.
- Real-time FFT
- Demod/envelope analysis
- ACMT – low speed bearing analysis
- Order Analysis
- Orbit Measurement
- User Band Pass Analysis
- Frequency Range: 0.5 Hz - 25 kHz (64 kHz sampling)
- FFT Resolution: Min: 100 lines, Max: 25,600 Lines
- Fully simultaneous for 3 channels
- Crest Readings
- Time signal measurements
- Phase Shift
- DC Measurements
- Centerline Measurements
- Smax
- Overall Measurements
Field Balancing
This module allows for balancing equipment in situ, both in the field and during final assembly, providing a quality product.
- Multiple balancing types such as Polar (0-360 degrees), component, and fixed weights
- Flexible Visualization of balancing: polar plot and table overview
- Optimizing the final vibration level at the two bearings supports in an early stage while balancing in a single plane
- Allows for Rotor setting to calculate balance quality according to ISO 1940
Advanced Balancer
This module, available in the SVA 95, supports advanced balancing process enabling up to eight (8) plane balancing.
Ultrasound
This module uses a microphone (sold separately) to allow for the measurement of sound inaudible to the human ear.
Recorder
This module is a unique measurement mode allowing you to “record” the raw signal from the sensor i.e. the raw signal from the machine.
- The Recorder allows you to then post-process the signal later on the unit.
- The user can perform the post-processing on the same raw data multiple times.
Bump Test
This module enables the user to find the resonance frequency of a machine by "bumping" the machine with a mallet.
Lubri - Greasing Control
This module is used in the lubrication replenishment process and measures the actual lubrication condition of a bearing.
Stethoscope
This module is designed for listening of vibrations.
Octave Analysis
This module is designed for sound measurements.
Camera
This module is a unique measurement mode allowing you to “record” the raw signal from the sensor i.e. the raw signal from the machine.
- This module is equipped with an optical camera to allow the SVA 95 user to capture images of the machine they are working on.
Thermal Imaging
This module is a unique measurement mode allowing you to “record” the raw signal from the sensor i.e. the raw signal from the machine.
- This module provides an image capture of the temperature on a machine.
- The IR camera (sold separately) can be connected to the SVA 95.
Diagnostic Center Basic
This software allows for connection of the SVA 90/95 to the PC for Report Generation.
Tracking
This module allows the user to set up a coast down or runup measurement.
- The measurements can be taken based on multiple situations such as by speed change, time change, as soon as possible, etc.
- This feature helps the user see where resonances in their machine are located allowing for additional analysis or balancing to be performed.
Data Collector
This module is used for day-to-day data collection of your factory machinery. Simply create your route tree with measurement points using the Diagnostic Center Standard software and take the measurements regularly. Transfer this collected data back to the Diagnostic Center to analyze the data and trends.
- Unlimited number of routes
- Up to 12 measurements per point
- Up to 3 vibration measuring points, plus speed reference (Simultaneously measured)
- Data review on site possible
- Off route measurements are possible
- Diagnostic Center Standard
- Customized Reports via PC
Diagnostic Center Standard
The Upgrade from Basic to Standard allows for additional cursor functions when analyzing the data on the PC. The Standard software also allows for the creation of Routes and is needed when the Data Collection module is added.
Diagnostic Center Pro
The upgrade to the Pro version of the software allows for the management of custom report templates and the use of the bearing and system database.
