![Horizontal Balancing Machines: HM 6 - HM 80 Horizontal Balancing Machines: HM 6 - HM 80](files/userImages/images-katalog/products/HM6-HM80/R00-040-02.jpg)
- Universally applicable through modular design
- Safe handling through economic design concept
- Full range of safety equipment for all protection classes
- Easy change-over to different rotors
Special features
- With the appropriate machine design and a suitable protection device the machines can also be used for high-speed balancing
- Bearing force monitoring for automatic shut-down in case of overload
- Contact-free measurement of concentric running of rollers
- Graphical display of acceleration curve with 1f and 2f measurement (CAB 920)
- Wide range of supplementary modules, e.g. for mass correction
Range of application
Universal balancing machines series HM6-HM80 are conceived for precise balancing of both rigid and flexible rotors.Typical applications are:
- Blowers and fans for a variety of industries
- High-speed and low-speed rollers for paper and thin sheet production
- Electrical short-circuit armatures and generators for the electrical industry
- Separators / centrifuges for water processing
Design

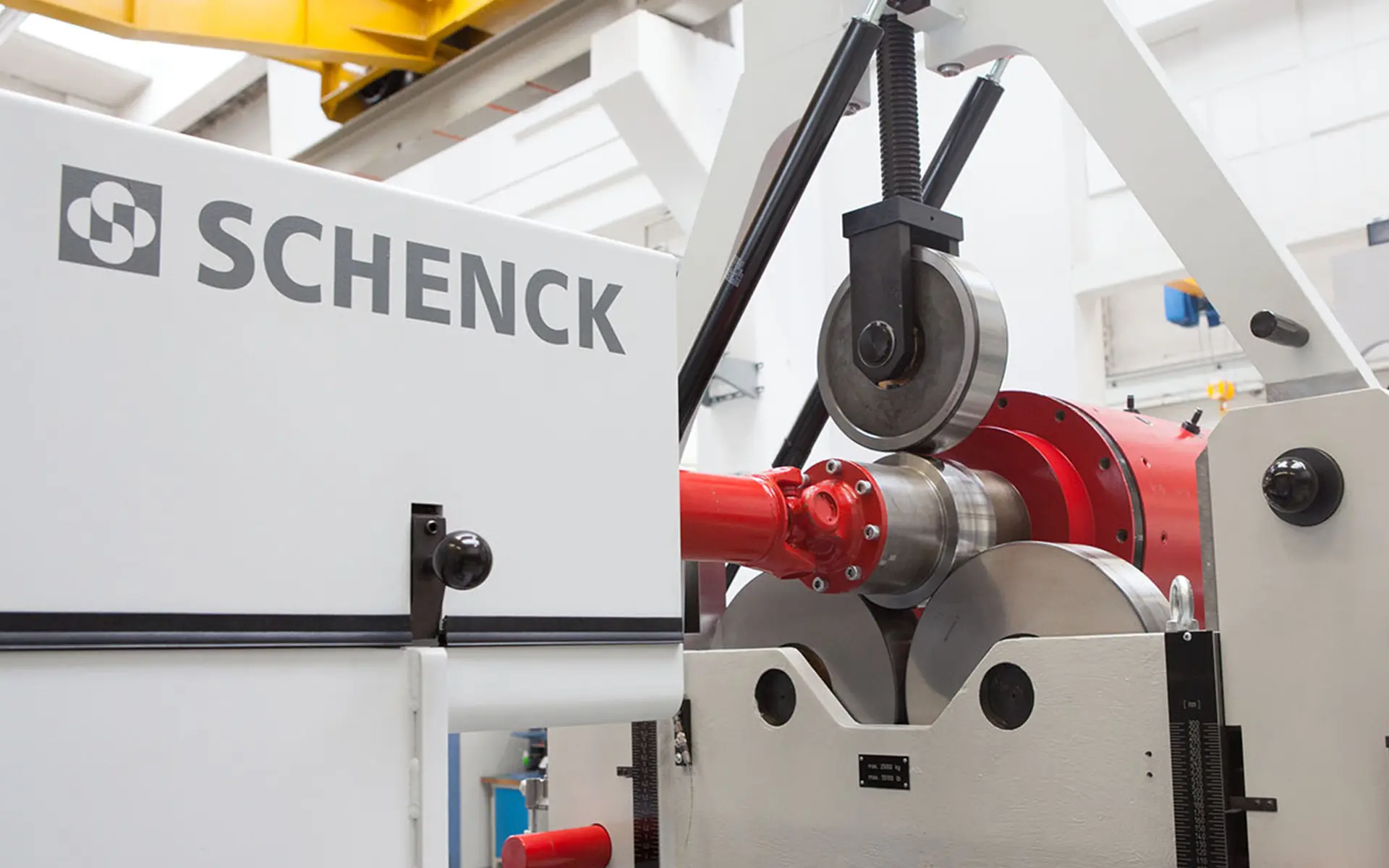

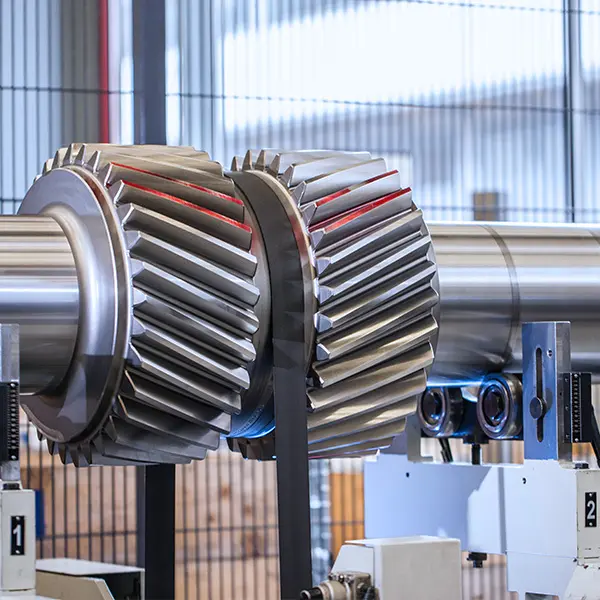

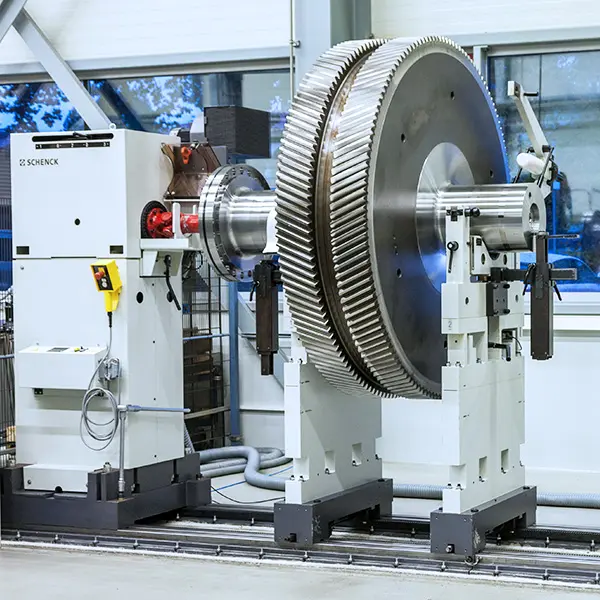

Due to their modular structure, these machines can be adapted easily to the task in hand. The length of the machine bed is dependent on the length of the rotor, the required height of the bearing pedestals is determined by the rotor diameter. If the rotor is mounted on its own bearing journals, these will be supported by roller carriages. Depending on the requirements imposed by the rotor, sleeve bearings may also be used.Rotors requiring high torques are driven through variable-speed gearboxes and universal joint shaft. Lightweight rotors with smooth surfaces may be driven with the help of a belt drive system.
Technical data at a glance | HM 6 | HM 60 | HM 7 | HM 70 | HM 8 | HM 80 | |
Measuring unit | CAB 820 | CAB 820 | CAB 820 | CAB 820 | CAB 820 | CAB 820 | |
Roller carriages | • | • | • | • | • | • | |
Universal-joint shaft drive | • | • | • | • | • | • | |
Underslung belt drive BU | • 5) | • 5) | • 5) | • 5) | • 5) | • 5) | |
Protective device as per ISO 7475 5) | • | • | • | • | • | • | |
Rotor | |||||||
Weight, max. | [kg] | 12 500 | 20 000 | 32 000 | 50 000 | 125 000 | 250 000 |
Diameter | [mm] | 2100 | 2100 | 2800 | 2800 | 3600 | 3600 |
Bearing distance, max 2) | [mm] | 3150 | 4650 | 5050 | 5050 | 5800 | 5800 |
Bearing journal diameter 2) | [mm] | 40 - 320 | 50 - 400 | 60 - 500 | 70 - 600 | - | - |
Machine | |||||||
Width A 1) | [mm] | 4650 | 5100 | 6600 | 6600 | 7800 | 7800 |
Depth B 1) | [mm] | 4050 | 4050 | 4050 | 4050 | 4500 | 4500 |
Height C 1) | [mm] | 2000 | 2000 | 2000 | 2000 | 2000 | 2000 |
Balancing speed, min. | [min -1] | 120 | 120 | 120 | 120 | 120 | 120 |
MARU 4) | [gmm] | 30 | 40 | 64 | 80 | 160 | 240 |
Air pressure | [kPa] | 600 | 600 | 600 | 600 | 600 | 600 |
Power supply 3) | [V] | 400 3) | 400 3) | 400 3) | 400 3) | 400 3) | 400 3) |
Drive power | [kW] | 22 | 37 | 55 | 75 | 90 | 110 |
Sound Pressure Level (with belt drive) | [LpA [dB(A)]] | 70 - 80 | 70 - 80 | 70 - 80 | 70 - 80 | 70 - 80 | 70 - 80 |
Order-Nr. | R0061100.01 | R0061200.01 | R0061300.01 | R0061400.01 | R0061500.01 | R0061600.01 | |
Order-Nr. | R0061101.01 | R0061201.01 | R0061301.01 | R0061401.01 | R0061501.01 | R0061601.01 | |
Software options | Order-Nr. | o.r. | o.r. | o.r. | o.r. | o.r. | o.r. |
Underslung belt drive | Order-Nr. | R0060203.01 | R0060203.01 | R0060203.01 | R0060203.01 | - | - |
Tangential belt drive BT | Order-Nr. | - | - | - | - | - | - |
Various roller carriage | Order-Nr. | o.r. | o.r. | o.r. | o.r. | o.r. | o.r. |
Report printer | Order-Nr. | R0061105.01 | R0061205.01 | R0061305.01 | R0061405.01 | R0061505.01 | R0061605.01 |
Mass correction system | Order-Nr. | o.r. | o.r. | o.r. | o.r. | o.r. | o.r. |
2) Other data on request | |||||||
3) Main configuration: 3 / PE AC 500Hz 400 V +6 / -10% | |||||||
4) Minimum achievable residual unbalance per balancing plane | |||||||
5) Alternatively or additionally | |||||||
o.r. On request |
